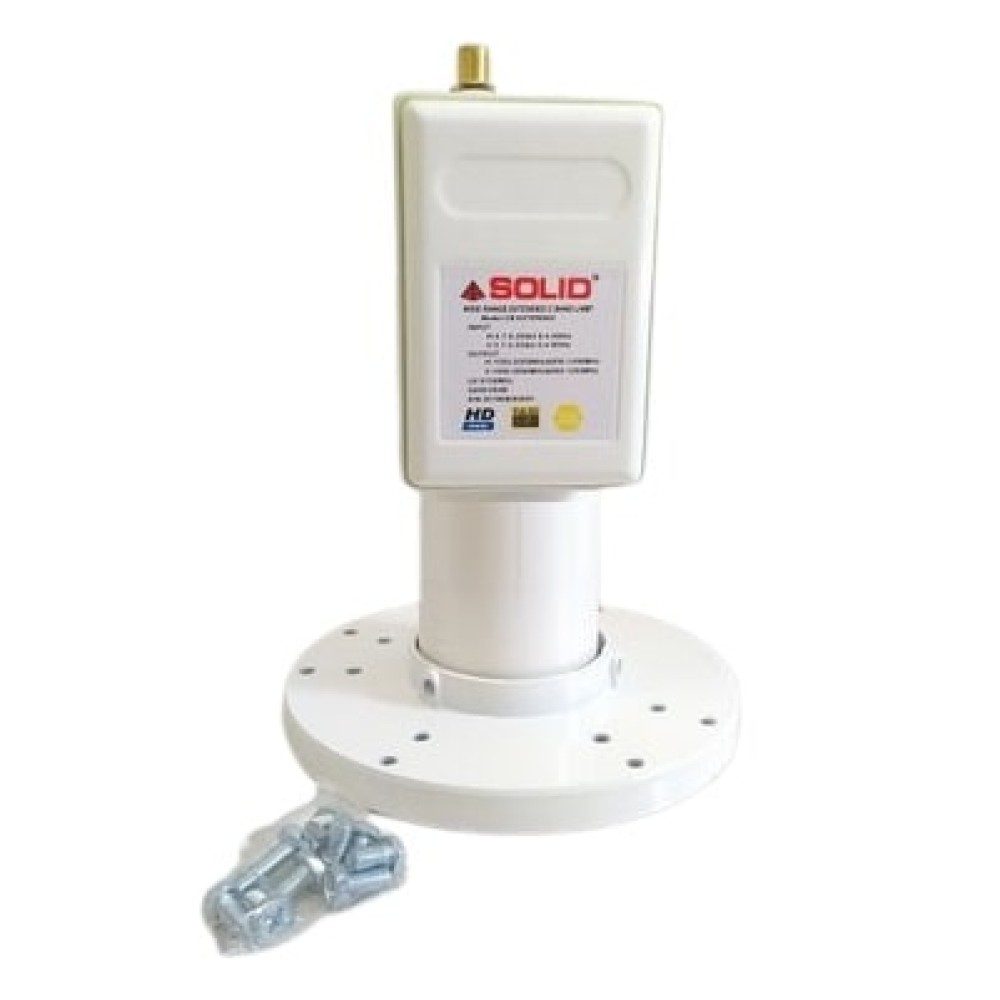

SOLID C-Band + C-Band Extended Wide Range C-Band LNBF

SOLID C-Band + C-Band Extended Wide Range C-Band LNBF

This LNB works on two L.O. or LNB Frequency (Normal C-Band and Extended C-Band)

Specifications -

LO: 5150MHz (C-Band + C-Band Extended Signals)

Noise Figure: 12K

Gain: 65dB

Input Frequency - 3.7~4.2GHz and also Receive 4.2GHz ~ 4.5GHz

Output Frequency - 950 ~ 1250MHz and 1250 ~ 1550MHz

LO: 5750MHz (C-Band + C-Band High Extended Signals)

Noise Figure: 12K

Gain: 65dB

Input Frequency - 4.5GHz ~ 4.8GHz

Output Frequency - 1550 ~ 2050MHz

LO: 5750MHz (C-Band + C-Band High Extended Signals)

Noise Figure: 12K

Gain: 65dB

Input Frequency - 3.7~4.8GHz

Output Frequency - 950~2050MHz

Please note, that you can use a single L.O. 5750 to receive all signals. No need to feed 5150 and 5950. It will work, we have tested it. It can receive C-Band+C-Band Extended Signals.
