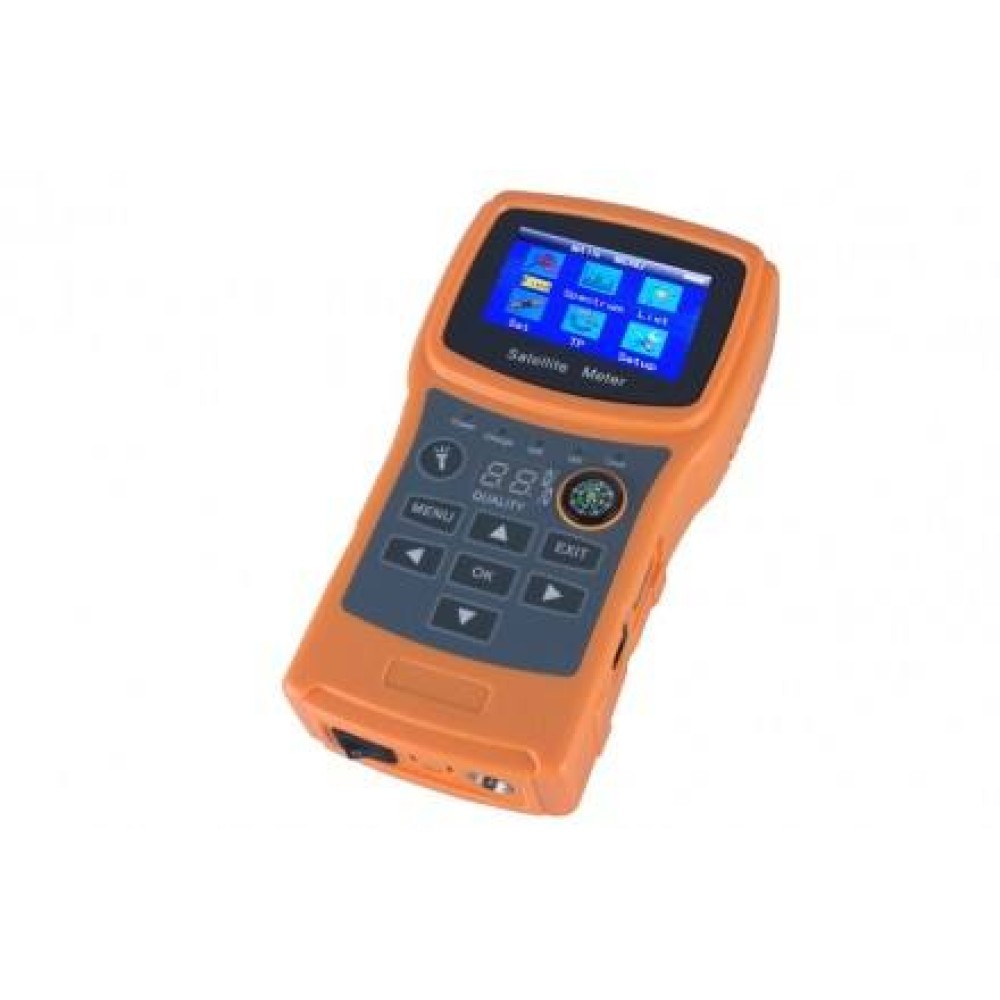

G-Sat HD Digital Satellite Finder

G-Sat HD Digital Satellite Finder

Features:

Supports DVB-T, DVB-T2, and DVB-C functions

Automatic channel scanning

Built-in highlight LED for clear visibility

Displays signal quality via nixie tube

Integrated buzzer for signal alerts

Automatic power cable check support

Reset to factory defaults option

Signal power units supported: dBm, dBuV

USB 2.0 interface for software upgrades and data backup

Specifications – DVB-T2 Signals:

Frequency Range: 170–230 MHz (VHF Band), 470–862 MHz (UHF Band)

Impedance: 75 ohm

Signal Level: -78 to -10 dBm

Demodulation Schemes:

DVB-T: QPSK / 15QAM / 64QAM / 256AQM

DVB-T2: 16QAM / 64QAM / 256QAM

Bandwidth: 5 MHz / 6 MHz / 7 MHz / 8 MHz

Demodulation Type: DVB-T and DVB-T2

Specifications – DVB-C Signals:

Frequency Range: 47–862 MHz

Impedance: 75 ohm

Signal Level: -78 to -10 dBm

Symbol Rate: 1.4M to 7.5M baud

Demodulation Schemes: 16QAM / 32QAM / 64QAM / 128QAM / 256QAM

Demodulation Type: DVB-C

Bandwidth: 6 MHz / 8 MHz
