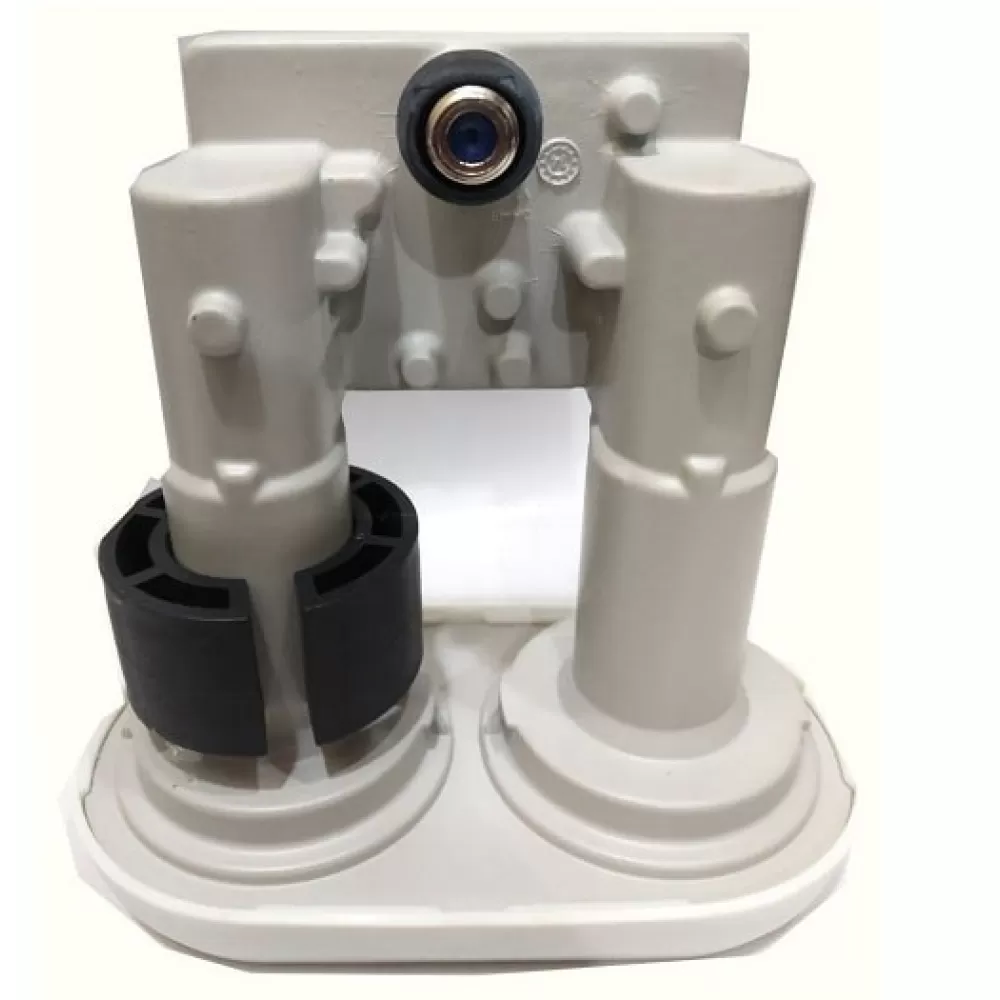

Monoblock Multi Satllite Universal lnb

Dual Satellite Reception Multi-Satellite Universal Monoblock LNB

Single Monoblock 60mm LNB 6° for 80cm or above dish. This monoblock LNB was designed for dual satellite reception at once with a single dish. It can be used for the broadcast reception of any two satellites spaced with 6° on an 80cm dish antenna and its distribution to a single tuner Set-top box.

Ideal to enjoy channels from DD Freedish and Asiasat or Paksat satellites or other Satellite. It is suitable for High Definition transmissions and provides excellent Noise Figure performance. Since it was developed to meet strict specifications and manufactured to the highest quality standards

Monoblock Single LNB 1

1 participant 1 output:V + H + Low + High For 1 receiver
2 feeds 2 satellite positions
DISEqC 2.0 switch already integrated
Analog Digital HDTV-DVBS2 3D compliant
LNB with embedded 6 degree's fitting for easy mounting and adjustment.
60mm Feed
F port Weather cap
Low phase Noise
The low Noise figure of 0.1 dB
Low Power consumption
Very high Cross-Pole performance
Very high-Frequency stability

Stability Specifications:
Input frequency:
Low band: 10.7 - 11.7 GHz
High band: 11.7 - 12.75 GHz
Local Oscillator Frequency (LOF):
1st LOF (Low band): 9.75 GHz
2nd LOF (High band): 10.6 GHz
Output frequency (OF):
Low band: 950 - 1950 MHz
High band: 1100 - 2150 MHz
OF = Input Frequency-LOF

The design may be the different as per stock. so every time receives different designs and sizes. specs remain the same, the product is may be used or removed from the dish antenna. But it is tested by quality. Returns accepted if defects within 24 hours.

FAQs
Which is better LNB monoblock or single LNB?
You use a single lnb if you want to receive a single satellite, but you want to two satellites in a single dish antenna or and then you should use the monoblock lnb.
